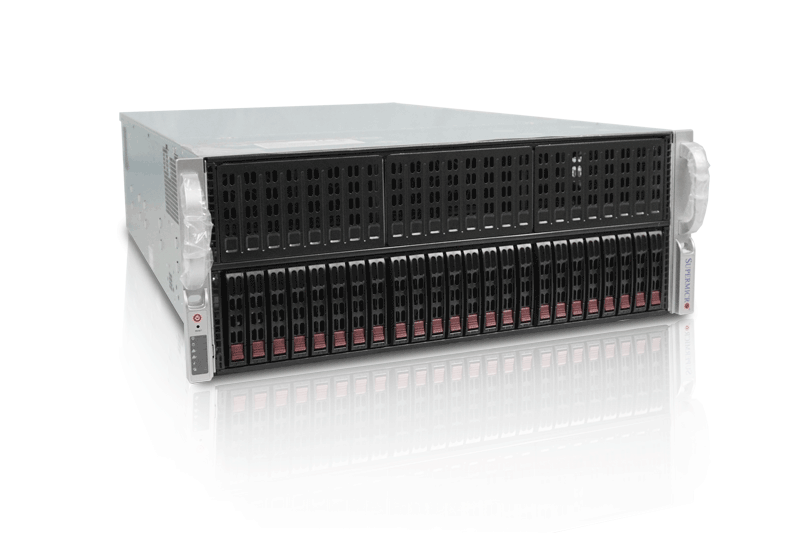

SYS-4029GP-TRT2 | SuperServer 4029GP-TRT2 |
Processor |
CPU | Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,3 UPI up to 10.4GT/s Support CPU TDP 70-205W |
Cores | Up to 28 Cores |
Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
GPU |
Supported GPUs | 10 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) NVIDIA V100, P40, T4, Quadro, RTX ；Supports both active and passive cooled GPUs Compatible GPU list |
CPU-GPU Interconnect | PCI-E Gen 3 x16 Switch Single-Root PCIe Root Architecture Chart |
GPU-GPU Interconnect | PCI-E, NVIDIA® NVLink™ Bridge (Optional) |
System Memory |
Memory Capacity | 24 DIMM slots Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM†† |
Memory Type | 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info. |
On-Board Devices |
Chipset | Intel® C622 chipset |
SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
Network Controllers | Dual Port 10GbE from C622 |
IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
Graphics | ASPEED AST2500 BMC |
Input / Output |
SATA | 8 SATA3 (6Gbps) ports |
LAN | 2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port |
USB | 4 USB 3.0 ports (rear) |
Video | 1 VGA Connector |
Serial Port / Header | 1 COM port (header) |
System BIOS |
BIOS Type | AMI 32Mb SPI Flash ROM |
Management |
Software | Intel® Node Manager；IPMI 2.0；KVM with dedicated LAN M, SUM；SuperDoctor® 5； Watchdog |
PC Health Monitoring |
CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
Dimensions and Weight |
Height | 7.0" (178mm) |
Width | 17.2" (437mm) |
Depth | 29" (737mm) |
Weight | Net Weight: 65.5 lbs (29.7 kg) Gross Weight: 100 lbs (45.3 kg) |
Available Colors | Black |
Expansion Slots |
PCI-Express | 11 PCI-E 3.0 x16 (FHFL) slots - supporting up to 10 GPUs 1 PCI-E 3.0 x8 (FH, FL, in x16) slot |
Drive Bays / Storage |
Hot-swap | Up to 24x 2.5" SAS/SATA drive bays 8x 2.5" SATA supported natively 2x 2.5" NVMe supported natively |
M.2 | 1 NVMe based M.2 SSD Form Factors: 2260, 2280, 22110 |
System Cooling |
Fans | 8 Hot-swap 92mm cooling fans |
Power Supply |
2000W Redundant Power Supplies with PMBus |
Total Output Power | 1000W: 100 – 120Vac； 1800W: 200 – 220Vac； 1980W: 220 – 230Vac；2000W: 230 – 240Vac 2000W: 200 – 240Vac (UL/CUL only) |
Dimension (W x H x L) | 73.5 x 40 x 265 mm |
Input | 100-120Vac / 12.5-9.5A / 50-60Hz 200-220Vac / 10-9.5A / 50-60Hz 220-230Vac / 10-9.8A / 50-60Hz 230-240Vac / 10-9.8A / 50-60Hz 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) |
+12V | Max: 83.3A / Min: 0A (100-120Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 166.7A / Min: 0A (230-240Vac) Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) |
Output Type | 25 Pairs Gold Finger Connector |
Operating Environment |
RoHS | RoHS Compliant |
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non condensing) Non-operating Relative Humidity:5% to 95% (non-condensing) |
